Irrigation Backflow Preventer Testing (Complete How-To Guide)

If you own an irrigation system, chances are you’ve heard about backflow preventers — but few homeowners really understand them. At Matehuala Landscape And Irrigation, we handle irrigation backflow preventer testing all across Celina and the surrounding areas, and we’ve seen firsthand how a small, overlooked device can protect (or endanger) your family’s drinking water. This little component matters more than most people realize.

In this complete how-to guide, we’ll walk you through everything — what a backflow preventer does, how often it needs testing, the tools you’ll need, and a step-by-step process. We’ll also cover common problems and when it makes sense to call a pro. Let’s dig in.

What Is an Irrigation Backflow Preventer and Why Testing Matters

A backflow preventer is a valve that stops water from flowing BACKWARD into your clean water supply. Normally, water flows one way — from the city main into your irrigation system. But sometimes pressure drops (think water main breaks or heavy usage nearby), and that reversal can suck contaminated water — fertilizer, pesticides, pet waste, standing water — right back into the pipes you drink from. Scary, right?

That’s why testing matters. A backflow preventer with worn seals or stuck valves might LOOK fine but fail when it counts most. Regular testing confirms the device actually does its job. In many Texas municipalities (Celina included), annual testing isn’t just smart — it’s often required by law.

• Protects drinking water — keeps irrigation contaminants out of your home’s supply.
• Meets local code — most cities mandate annual testing for irrigation systems.
• Prevents costly fines — skipping required tests can lead to penalties or shut-off notices.
• Catches wear early — rubber seals and springs degrade over time.
• Gives peace of mind — you KNOW your family is safe.

How Often Should You Test Your Irrigation Backflow Preventer

The short answer? At least once a year. Most cities in our service area — Celina, Frisco, Prosper, McKinney and beyond — require an annual certified test to keep your irrigation system compliant. But there are situations where you’ll want to test more frequently, especially after repairs or freezing weather (which we DO get in North Texas).

Think of it like an oil change for your car. You don’t wait until the engine seizes — you stay ahead of it. The same logic applies here. A quick test each spring, before you fire up the sprinklers for the season, is the smart move.

• Annually — the baseline requirement in most municipalities.
• After a hard freeze — cold weather can crack internal components.
• After any repair — anytime the device is opened up or replaced.
• When you buy a home — you never know how the last owner maintained it.
• If you notice pressure changes — weird flow issues can signal a problem.
• Before the irrigation season starts — spring is the perfect checkpoint.

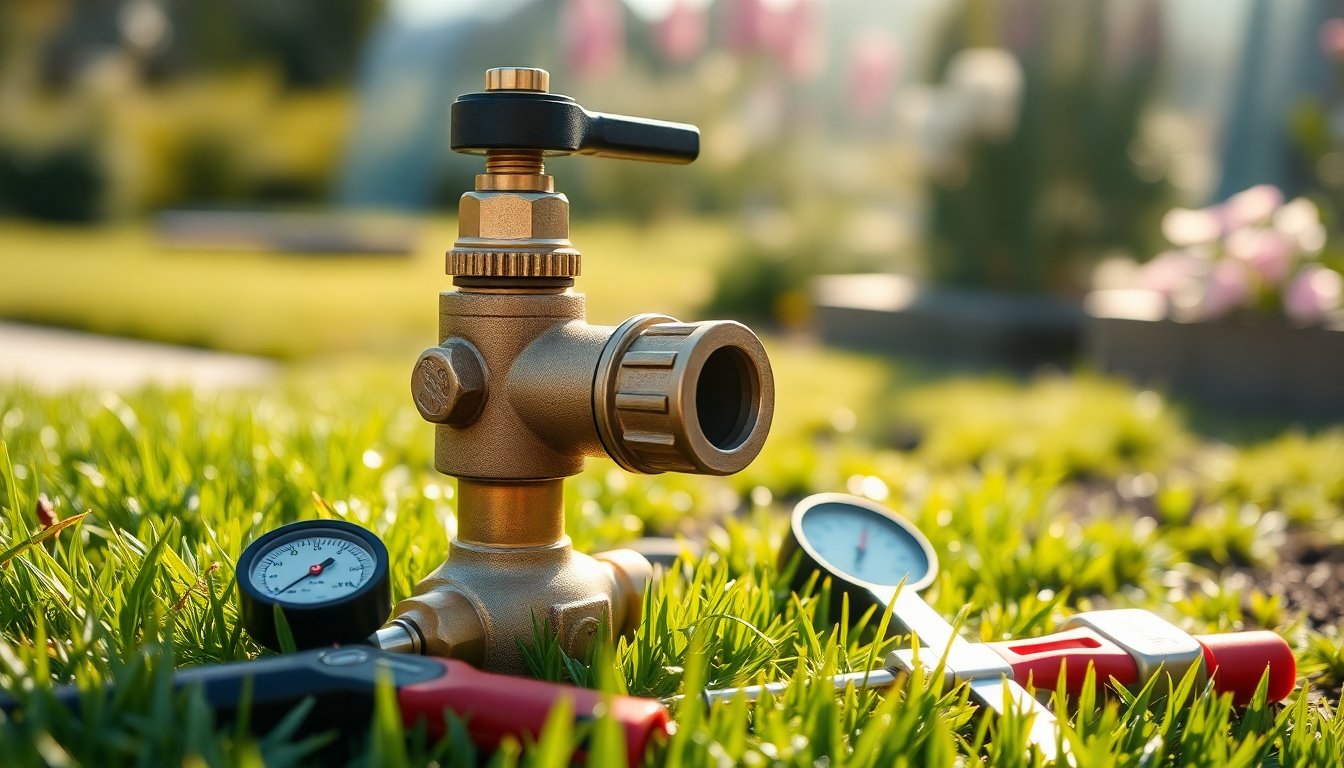

Tools and Equipment Needed for Backflow Preventer Testing

Testing a backflow preventer isn’t like tightening a loose screw — it requires SPECIFIC equipment. The heart of the job is a backflow test kit (a differential pressure gauge). Without it, you simply can’t measure whether the internal valves are holding correctly. Here’s what a proper test setup looks like.

Keep in mind — some of these tools are specialized and calibrated. That’s part of why professional testing exists (more on that later). But if you’re a curious DIYer wanting to understand the process, here’s the full list.

• Backflow test kit — a calibrated differential pressure gauge (the main tool).
• Test cock fittings and hoses — to connect the gauge to the device.
• Adjustable wrenches — for opening and closing test cocks.
• Bleed valves — to release air and stabilize readings.
• A bucket or drain hose — to catch discharged water.
• Teflon tape — to reseal fittings after testing.
• Safety gloves and eyewear — because water pressure can surprise you.
• A test report form — required for official submission to the city.

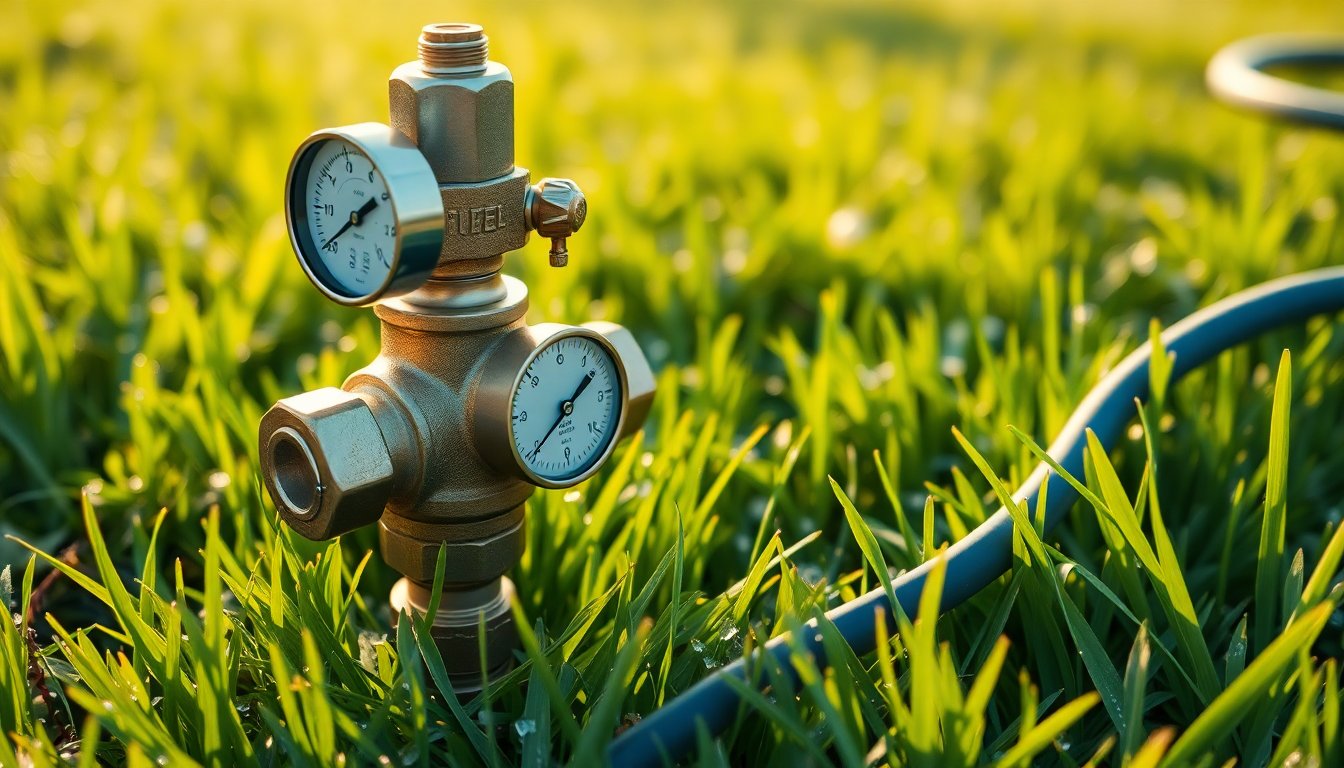

How to Test an Irrigation Backflow Preventer Step by Step

Ready for the actual process? Below is a general step-by-step for testing a common reduced pressure zone (RPZ) or double-check backflow device. IMPORTANT — this is an educational overview. Certified testing has legal requirements, and improper handling can damage your system or leave contaminated water in your lines. Proceed carefully.

1. Identify your device. Locate the backflow preventer (usually near the water meter or where the irrigation line connects). Note the type — RPZ, PVB, or double-check.
2. Shut off the downstream valve. Close valve #2 (the outlet side) to isolate the device from the irrigation zones.
3. Attach the test kit. Connect your differential pressure gauge to the test cocks according to the device type and gauge instructions.
4. Bleed the air. Open the bleed valves slowly to purge trapped air — you want an accurate reading, not a false one.
5. Test the first check valve. Open test cock #2 and watch the gauge. The valve should hold a minimum pressure differential (typically 1 PSI or more).
6. Test the second check valve. Repeat the process for the second valve, confirming it also holds properly.
7. Test the relief valve (RPZ only). Confirm the relief valve opens at the correct pressure to discharge water if the checks fail.
8. Record your readings. Log all pressure values on the test report form — pass or fail.
9. Restore the system. Close all test cocks, remove the gauge, reopen the downstream valve, and check for leaks.
10. Submit the results. If required by your city, send the completed report to the appropriate department.

Common Backflow Preventer Problems and How to Fix Them

Even well-maintained devices run into issues. Here are the ones we see most often — and what usually solves them.

Leaking Relief Valve

If water is CONSTANTLY trickling from the relief valve, it usually means debris is stuck in one of the check valves or a rubber seal has worn out. The fix? Clean out the debris or replace the rubber seat. Sometimes a full rebuild kit is the smarter long-term solution.

Low or Fluctuating Pressure

Noticing weak sprinkler pressure? A partially clogged or failing backflow preventer could be the culprit. Sediment buildup restricts flow. Flushing the device — or replacing worn internal parts — typically restores normal pressure.

Freeze Damage

North Texas winters can be sneaky. A hard freeze can crack the brass body or split internal components if the device wasn’t insulated or drained. Unfortunately, freeze damage often means REPLACEMENT rather than repair. Insulating covers help prevent this every winter.

Failed Test Results

Sometimes the device simply fails the certified test. This means the check valves aren’t holding pressure. Rebuild kits (with fresh springs, seals, and o-rings) fix most failures. If the body is corroded or too old, a new unit is the way to go.

Stuck or Corroded Test Cocks

Over time, the small test cock fittings can seize up from mineral buildup. Gently working them loose with penetrating oil usually does the trick — but forcing them can snap the brass, so patience matters here.

DIY vs Professional Backflow Testing: Cost and Certification Requirements

Here’s the honest truth — while you CAN learn how the process works, most cities require a licensed, certified tester to perform and submit the official annual test. In Texas, backflow testers must hold a certification (often BPAT — Backflow Prevention Assembly Tester), and the test kit must be calibrated on a regular schedule. That’s a big reason most homeowners choose a pro.

DIY makes sense for understanding your system or troubleshooting minor issues. But for the OFFICIAL compliance test? Professional service saves time, avoids fines, and guarantees accuracy. Here’s how the two compare.

• DIY cost — a test kit alone can run $300 to $700+, plus calibration fees each year.
• Professional cost — typically a modest flat fee per test, far cheaper than buying equipment.
• Certification — most municipalities ONLY accept results from a licensed tester.
• Calibration — pro gauges are calibrated annually for accurate, legal readings.
• Liability — a certified tester assumes responsibility for the report’s accuracy.
• Convenience — a pro handles the paperwork and city submission for you.
• Repairs included — if your device fails, we can fix it on the spot.

For most folks in Celina, Frisco, Prosper, and nearby towns, hiring a certified pro is simply the easiest — and often the LEGALLY required — route. It’s one less thing to worry about, and it keeps your water safe and your system compliant.

Conclusion

Your irrigation backflow preventer is a small device with a BIG job — protecting the water your family drinks every day. Regular testing (at least annually) keeps it working, keeps you compliant with local codes, and catches wear before it becomes a problem. From understanding the tools to knowing the step-by-step process, you’re now way ahead of most homeowners.

If you’d rather leave the testing, repairs, or full system maintenance to the experts, the team at Matehuala Landscape And Irrigation proudly serves Celina and the surrounding communities. Reach out anytime to keep your irrigation system safe, efficient, and worry-free — we’re here to help.
